Just try to test the dimmer, but doesn’t respond correctly:
Board model: Freenove ESP2-WROOM board FNK0090A
Platform: Arduino IDE Version: 2.3.8
Arduino ESP32 espressif migration to 3.x
Dimmertype: Dimmer Module 16/24A with Temperature-Controlled Active Cooling
Library: rbdimmerESP32 library v2.0.0
What you’re trying to control: heater, for this test lamp 60Watt, without using cooling feature
The code:
#include <Arduino.h>
#include "rbdimmerESP32.h"
/** @name Pin Definitions
* @brief GPIO pins used for dimmer control
* @{
*/
#define ZERO_CROSS_PIN 2 ///< GPIO pin connected to zero-cross detector output
#define DIMMER_PIN 4 ///< GPIO pin connected to dimmer control input
#define PHASE_NUM 0 ///< Phase number (0 for single-phase systems)
/** @} */
/** @name Configuration Constants
* @brief Dimmer configuration parameters
* @{
*/
#define INITIAL_BRIGHTNESS 3 ///< Initial brightness level in percent (0-100)
#define MAINS_FREQUENCY 0 ///< Mains frequency: 0=auto-detect, 50=50Hz, 60=60Hz
/** @} */
/**
* @brief Global dimmer channel handle
*
* This pointer holds the reference to our dimmer channel after creation.
* It's used to control the dimmer throughout the program lifetime.
*/
rbdimmer_channel_t* dimmer = NULL;
/**
* @brief Arduino setup function
*
* This function runs once at startup and initializes all components:
* 1. Serial communication for debugging
* 2. RBDimmer library initialization
* 3. Zero-cross detector registration
* 4. Dimmer channel creation and configuration
* 5. Setting initial brightness level
*/
void setup() {
// Initialize serial communication for debug output
Serial.begin(115200);
// Wait for serial port to connect (needed for native USB boards)
//while (!Serial && millis() < 3000) {
// ; // Wait up to 3 seconds for serial connection
//}
// Print welcome message
Serial.println("\n=== RBDimmer Basic Example ===");
Serial.println("Initializing RBDimmer library...");
// Step 1: Initialize the RBDimmer library
rbdimmer_err_t err = rbdimmer_init();
if (err != RBDIMMER_OK) {
Serial.printf("ERROR: Failed to initialize library (error code: %d)\n", err);
Serial.println("Check your ESP32 board and ensure enough memory is available");
while (1) {
delay(1000); // Halt execution on error
}
}
Serial.println("Library initialized successfully");
// Step 2: Register zero-cross detector
Serial.printf("Registering zero-cross detector on pin %d...\n", ZERO_CROSS_PIN);
err = rbdimmer_register_zero_cross(ZERO_CROSS_PIN, PHASE_NUM, MAINS_FREQUENCY);
if (err != RBDIMMER_OK) {
Serial.printf("ERROR: Failed to register zero-cross detector (error code: %d)\n", err);
Serial.println("Check your wiring and ensure the pin supports interrupts");
while (1) {
delay(1000); // Halt execution on error
}
}
Serial.println("Zero-cross detector registered");
// Step 3: Configure and create dimmer channel
Serial.println("Creating dimmer channel...");
/**
* @brief Dimmer channel configuration
*
* This structure defines all parameters for the dimmer channel:
* - gpio_pin: Output pin that controls the TRIAC
* - phase: Which AC phase this dimmer is connected to
* - initial_level: Starting brightness (we'll override this)
* - curve_type: RMS curve is best for incandescent bulbs
*/
rbdimmer_config_t config = {
.gpio_pin = DIMMER_PIN,
.phase = PHASE_NUM,
.initial_level = 0, // Start with light off
.curve_type = RBDIMMER_CURVE_RMS // RMS curve for incandescent bulbs
};
err = rbdimmer_create_channel(&config, &dimmer);
if (err != RBDIMMER_OK) {
Serial.printf("ERROR: Failed to create dimmer channel (error code: %d)\n", err);
Serial.println("Check your pin configuration and available timers");
while (1) {
delay(1000); // Halt execution on error
}
}
Serial.println("Dimmer channel created successfully");
// Step 4: Set brightness level
Serial.printf("Setting brightness to %d%%...\n", INITIAL_BRIGHTNESS);
err = rbdimmer_set_level(dimmer, INITIAL_BRIGHTNESS);
if (err != RBDIMMER_OK) {
Serial.printf("WARNING: Failed to set brightness (error code: %d)\n", err);
} else {
Serial.printf("Dimmer is now running at %d%% brightness\n", INITIAL_BRIGHTNESS);
}
// Print status information
Serial.println("\nSetup complete! Dimmer is active.");
Serial.printf("Dimmer is now running at %d%% brightness\n", INITIAL_BRIGHTNESS);
// Wait a moment for frequency detection
delay(500);
// Print detected frequency
uint16_t frequency = rbdimmer_get_frequency(PHASE_NUM);
if (frequency > 0) {
Serial.printf("Detected mains frequency: %d Hz\n", frequency);
} else {
Serial.println("Frequency detection in progress...");
}
}
/**
* @brief Arduino main loop function
*
* In this basic example, the loop function simply maintains the set
* brightness level. The dimmer operates autonomously using hardware
* timers and interrupts, so no continuous updates are needed.
*
* The loop prints status information every 5 seconds to show
* that the system is running.
*/
void loop() {
// Static variable to track last print time
static unsigned long lastPrintTime = 0;
// Print status every 5 seconds
if (millis() - lastPrintTime >= 5000) {
lastPrintTime = millis();
// Get current dimmer status
uint8_t currentLevel = rbdimmer_get_level(dimmer);
uint16_t frequency = rbdimmer_get_frequency(PHASE_NUM);
bool isActive = rbdimmer_is_active(dimmer);
// Print status information
Serial.println("\n--- Dimmer Status ---");
Serial.printf("Brightness: %d%%\n", currentLevel);
Serial.printf("Frequency: %d Hz\n", frequency);
Serial.printf("Active: %s\n", isActive ? "Yes" : "No");
Serial.printf("Uptime: %lu seconds\n", millis() / 1000);
Serial.println("-------------------");
}
// Small delay to prevent watchdog issues
delay(10);
}
/**
* @example BasicDimmer.ino
*
* This example demonstrates basic AC dimmer control with the rbdimmerESP32
* library. It's the simplest starting point for understanding how to:
*
* 1. Initialize the library
* 2. Register a zero-cross detector
* 3. Create a dimmer channel
* 4. Set a fixed brightness level
*
* The dimmer will maintain the set brightness level indefinitely,
* demonstrating the autonomous operation of the library using
* hardware resources.
*
* @note This example uses RMS curve type, which is optimal for
* resistive loads like incandescent bulbs. For LED loads,
* consider using RBDIMMER_CURVE_LOGARITHMIC instead.
*/
The monitor: everything seems normal, but the lamp can not be dimmed totally:
rst:0x1 (POWERON_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
configsip: 0, SPIWP:0xee
clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
mode:DIO, clock div:1
load:0x3fff0030,len:4876
ho 0 tail 12 room 4
load:0x40078000,len:16560
load:0x40080400,len:3500
entry 0x400805b4
=== RBDimmer Basic Example ===
Initializing RBDimmer library…
Library initialized successfully
Registering zero-cross detector on pin 2…
Zero-cross detector registered
Creating dimmer channel…
Dimmer channel created successfully
Setting brightness to 3%…
Dimmer is now running at 3% brightness
Setup complete! Dimmer is active.
Dimmer is now running at 3% brightness
Detected mains frequency: 50 Hz
-– Dimmer Status —
Brightness: 3%
Frequency: 50 Hz
Active: Yes
Uptime: 5 seconds
-------------------

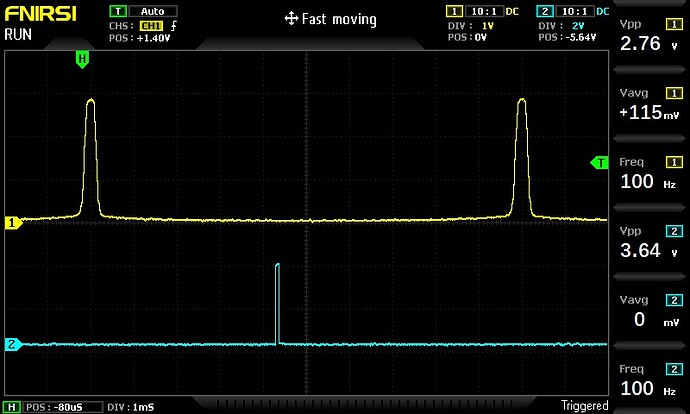

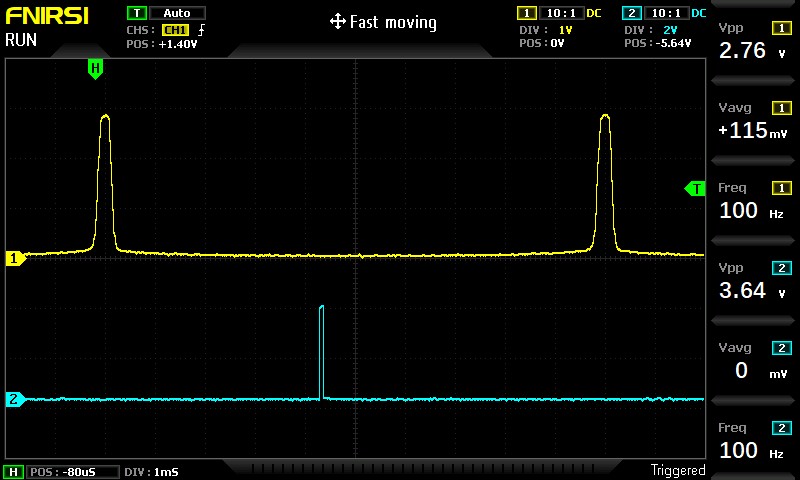

Waveform at 3 %
waveform 1: Z/C, waveform 2: dimmer
This is not correct! It should be appear at the end.
Waveform at 99%or 100% looks correct (can not insert it, as it gives an error!)
What can be the problem?
